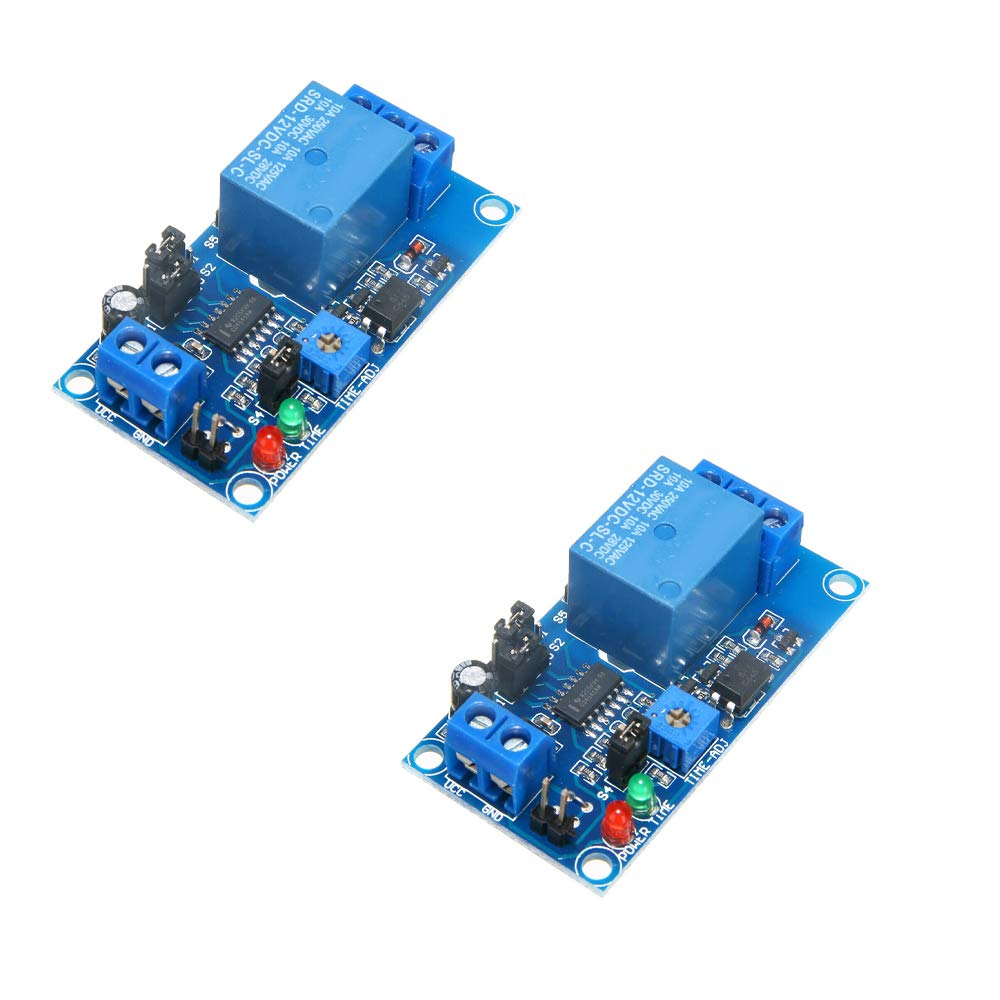

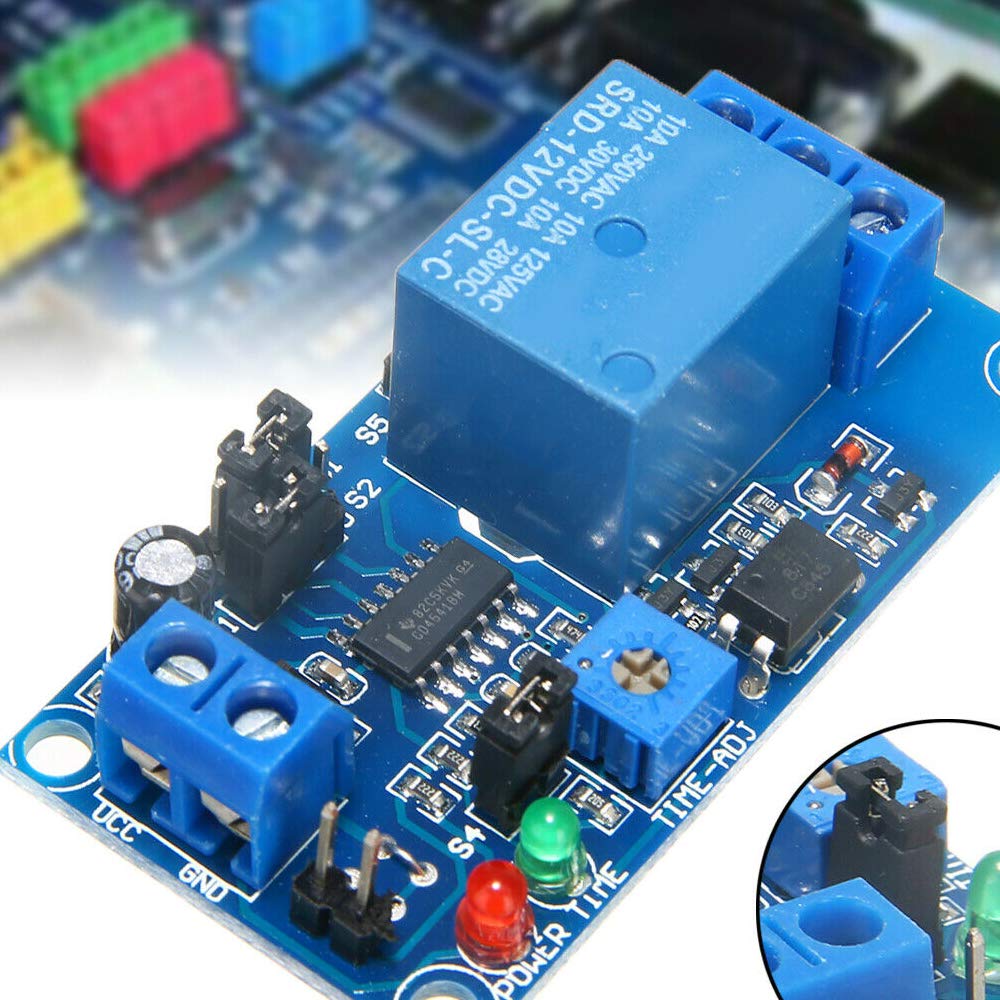

2 Pcs DC 12V Time Delay Relay Module, Trigger Circuit Timer Timing Board with LED Indicator Display

2 Pcs DC 12V Time Delay Relay Module Trigger Circuit Timer Timing Board Switch LED Indicator Display

2 Pcs DC 12V Time Delay Relay Module, Trigger Circuit Timer Timing Board with LED Indicator Display

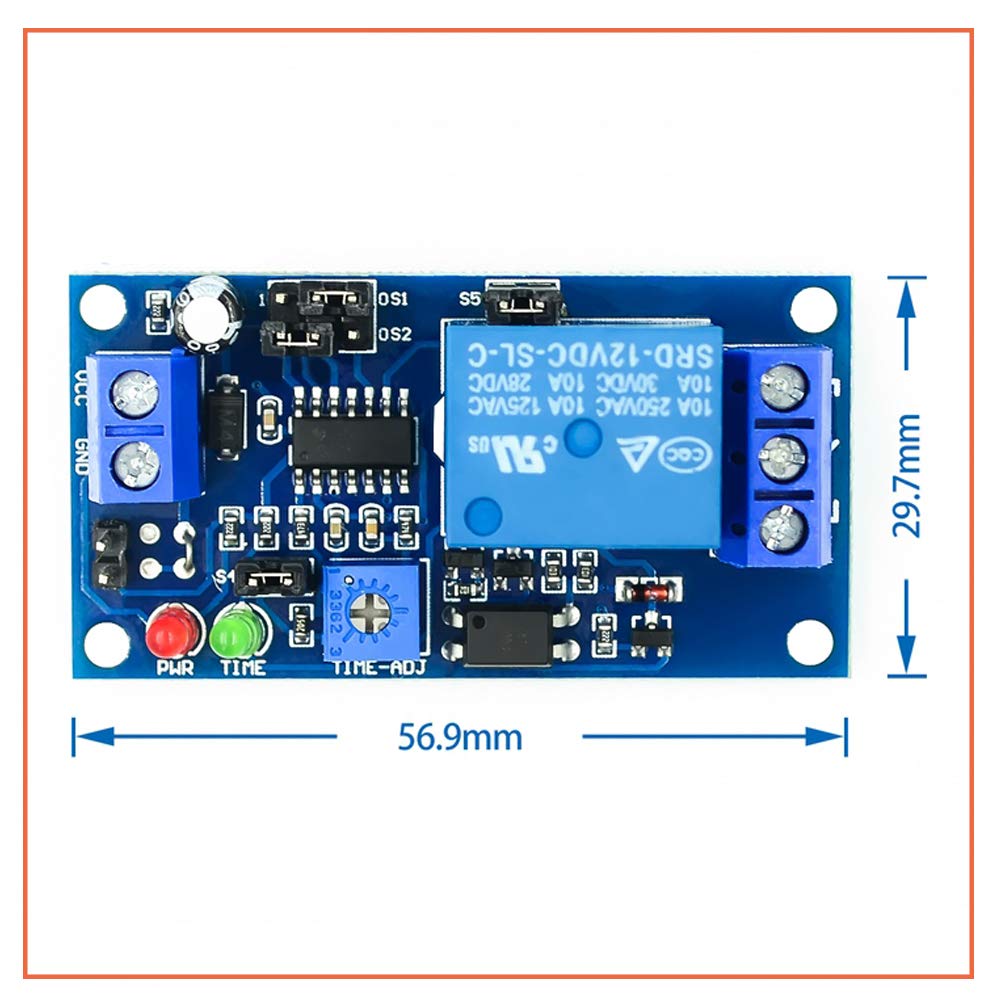

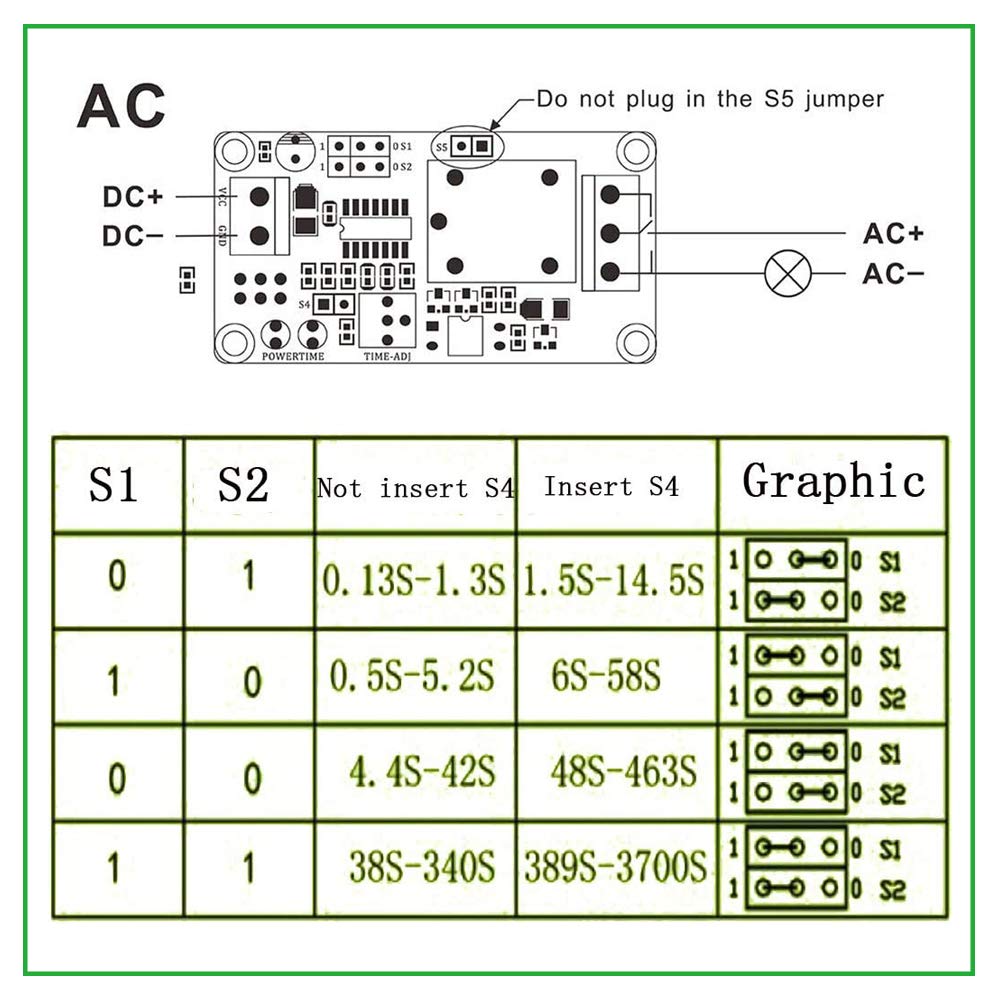

The SMPS based power supply of these modern electronic devices is vulnerable to spikes in the mains line so it gives a time delay of one minute before applying power to the device. This prevents deleterious effects due to inrush current and spurious spikes at power on. Specifications: Operating voltage:12V Output capacity:can control the DC 30v/10A or AC 250v/10A equipment Quiescent current:20mA Service life:more than 100,000 times Operating temperature:-40-85 Delay Time Range: switch S1, S2, S4 to different positions, potentiometer can adjust different time range Module size: 56.5mm X29.5mm X 18.5mm / 2.22 1.16 0.73 inch(L * W * H) Operating Method: Put S1, S2, S4 in the proper position, adjust the potentiometer to adjust to the time you need. When the trigger end of the module senses that there is a momentary closing of the switch, the module starts the delay function, and at the same time the relay pulls in and the delay ends and the relay recovers. When the module is triggered for delay, if a trigger signal is received again, the module will re-time until the delay ends. We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution. Package Includes: 2pcs

Key Features

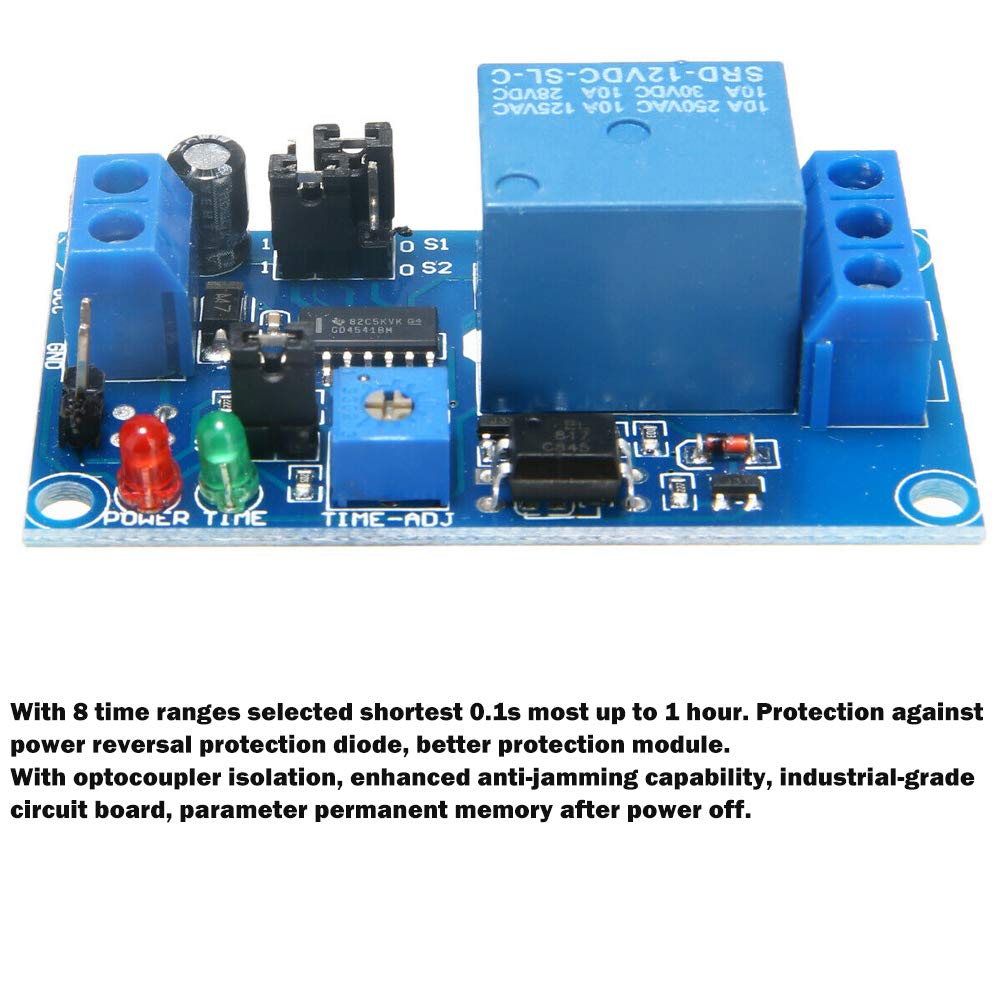

• ✅ Protect your equipments with this tiny 12V time delay relay circuit. With optocoupler isolation, enhanced anti-jamming capability, industrial-grade circuit board, parameter permanent memory after power off.

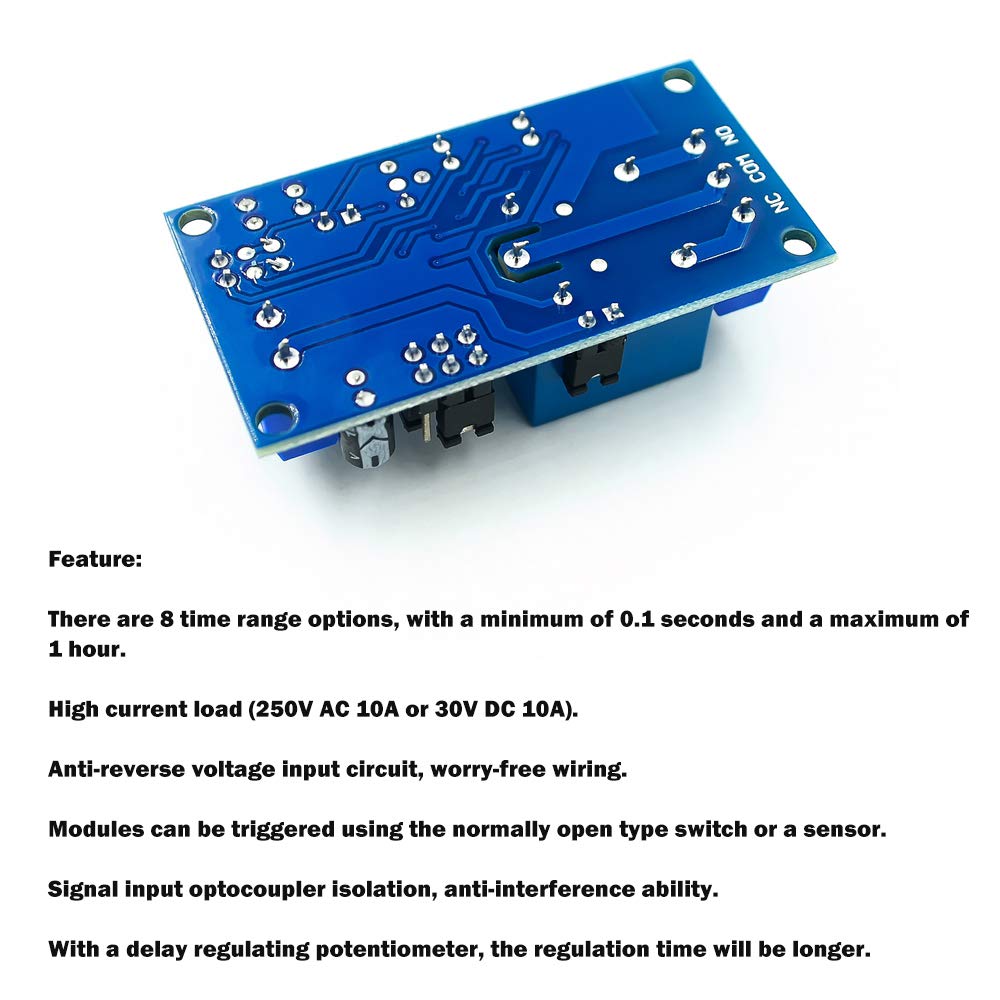

• ✅ There are 8 time range options, with a minimum of 0.1 seconds and a maximum of 1 hour.With delay adjustment potentiometer clockwise adjustment time longer.
• ✅ High current load (250V AC 10A or 30V DC 10A).Anti-reverse voltage input circuit, worry-free wiring.
• ✅ Modules can be triggered using the normally open type switch or a sensor.When the trigger end of the module senses that there is a switch closing trigger, the module starts the delay function, and the relay draws in. At the end of the delay, the relay is disconnected.
• ✅ Widely used in home intelligent system, anti-theft alarm system, door control system, automation equipment control, PLC industrial control, electronic development, etc.
